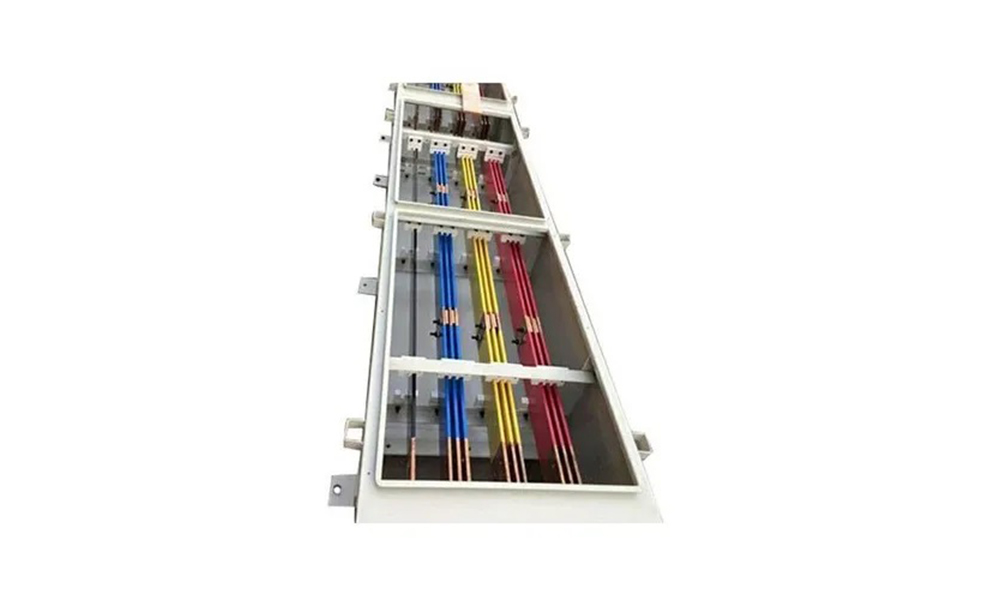

BUS DUCT (Upto 6300) AMP
Bus duct is a duct Container including either copper or aluminum busbar for the
purpose of conducting a substantial current. In electric power distribution, a
bus duct conducting electricity to power cables or cable bus.
Installing power cables is more difficult and takes a lot more manpower and more
time on site and can only be done by highly specialized electricians. However,
bus-duct can be installed quickly, efficiently and with ease resulting in a
significant reduction in on-site costs. Busbars also have a limited increase in
reactive power to operate compared to cable systems. Their design also reduces
the distance between conductors as well as resistance and Reduces voltage loss.
Application Of Bus-duct
- In Electrical Power Distribution a
bus-duct also called the busway. The bus duct is used for effective and
reliable supply in electricity for industrial locations. In other words,
the busway system is an effective method of distributing power from
switchgear to loads.
- Bus duct designed as per IS standard
IS 8623, IEC 60529. In addition, all switches and the circuit breakers,
connectors conformed to IEC 60947, part I, II and III/ IS 60947 part I,
II and III.
- Firstly, all indoor enclosure have
protected of IP52 or better even more all outdoor enclosure has
protected with up to IP65 . Secondly, all enclosure made by laser
cutting CRCA sheet and powder coating with the 7-Tank process system.
