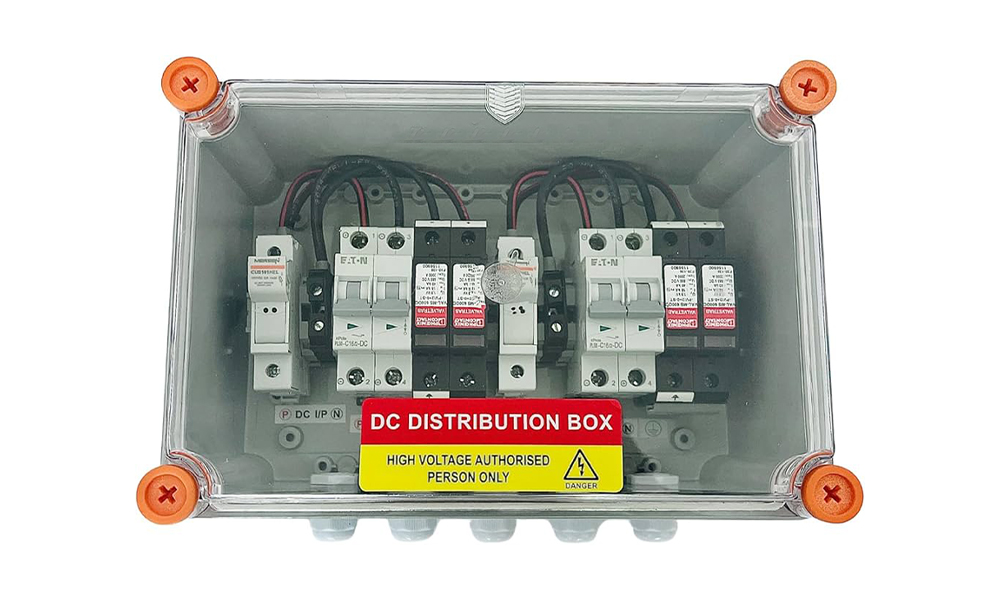

What is the DC Distribution Board
DC distribution board combines the dc power of solar PV modules strings into a
single array. In Addition, a combination of all strings is made a pass through
individual array dc fuses in shunt with DC SPD.
It is manufactured by keeping view of the protection of expensive inverters from
the direct and indirect lightning surges traveling from solar panels through its
connected cables.
DCDB comes with the combination package of DC fuses, surge protection
device(SPD), DC MCB/Isolators. Also, Indian Electro Power Control DCDB is dust,
vermin, and
waterproof are made out of polycarbonate enclosures. PG plastic glands and MC4
connectors give the provision of suitable cable entry and exit points of
appropriate sizes of incoming and also outgoing cables.
DC Distribution Board Features
- Indian Electro Power Control Solar
DCDB satisfies IEC-61439-1 and mandatory by MNRE and operates up to
1000Vdc.
- The enclosure provides IP65
protection.
- Complete electrical safety to avoid
hazards.
- Ferraz Mersen/Eaton DC Fuses to
prevent overloads.
- Reverse blocking diodes for reverse
current flow protection.
- User-friendly DC termination and
decent cable management.
- Easy cable plug-in and plug-out
provision for cable connection.
- Wall mounting design for easy
installation and maintenance.
